Saraswat Group ::: GAS METER

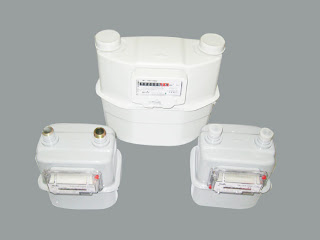

GAS METER  by  Saraswat Group

A  meter is used to measure the volume of fuel gases / fuels such as natural gas and LPG/propane & HSD.  meters are used at residential, commercial, and industrial applications that consume fuel gas supplied by a gas utility. Gases are more difficult to measure than liquids, as measured volumes are highly affected by temperature and pressure. Gas meters measure a defined volume, regardless of the pressurized quantity or quality of the gas flowing through the meter. Temperature, pressure and heating value compensation must be made to measur actual amount and value of gas moving through a meter. Several different designs of gas meters are in commonly used . we offer these meters up to 12 Bar Line pressure which is diaphragm & rotery type meters as per line pressure requirements.

www.saraswatgroup.com  ::::  www.gasequipments.in

L Type Ribbon Burner  V Type Ribbon Burner  Fish Tail Burner  ST Burner  S Burner

Saraswat Group ::: Commercial / Industrial burners :: Ring Type Burners

Ring Type Burners

Most appropriate for heavy heating requirements of commercial cooking and industries: General & Pharmaceuticals and Dairy. Produces lovely Blue Sunflower Shaped Flame; available in two capacities. These Burners are recommended to be used at a pressure of 320 gm/cm2 (4.5 psig), however this may be varied by ± 25%; the heat output being varied accordingly.
These Burners are also known as M-22 or M-1 and M-35 or M-2 . Also available in model M50, M78. The rated capacity of  Buners  M-22 , M-35 , M-50 & M-78 is  9900 K/cal, 17300 K/Cal, 24200 K/cal & 38940 K/cal  acordingly.

Color Matching Cabinet

Tensile Testing Machine

Specific Gravity Balance

Oxygen Index Tester

Rain Test Chamber

Costomised & Prepiped Gas Train

Second Stage L.P Gas Train

In combustion systems, the fuel train poses its own risk from explosions due to excessive pressure from the fuel train For protection of people, plants and equipments.

A gas train consist of Filter, Slam-shut off valve, pressure regulator, safety relief valve & flame arrestor. Filter helps to remove the dust/dirt particles in the gas which may damage the regulator parts. The slam-shut off valve normally remains open. In-case the outlet pressure of the regulator exceeds the permissible limits, the slam-shutoff valve senses it through the impulse line & instantly shuts off the supply to the downstream system. The safety relief valve’s provided for additional safety. It is to be set at higher pressure than the slam-shut off valve pressure so that the safety relief valve will operate only when slam-shut off valve fails to operate. The outlet of the safety relief valve is vented well above the root through the flame arrestor. we manufacture customized gas trains based on user's requirements after carefully study of the combustion process at the costumer plant / furnace. various aspects like user control logic, space availability, burner consumption, configurations are studied jointly with consumer & a suitable solution is offered to meet user requirements. we manufacture gas trains our plant at kosi (India).

Industrial Gas

LPG Tank Installation

Gas Handling Equipments

Gas Supply Company Delhi

Combustion Control Product

Under Pressure shut-off Valve

upso opso gas regulator

Under-pressure shut-off valves which provide back-up protection should the regulator fail or the gas supply pressure falls to a dangerously low level, for example if the bulk tank becomes empty for some reason.

Maternity Hospital

ECG Service Hospital

Ultra Sound Hospital

X-ray Service Hospital

Pregnancy Hospital

LPG/ PROPANE Tank Installations

L.P Gas Tank Installation

• Bulk LPG Installation can be Designed, Supplied, Installed & Commissioned on turnkey Basis In Accordance to Explosive Norms/Local Statutory Requirements.
 • In today’s modern scenario LPG (Liquefied Petroleum Gas) is the most easily available & economical Fuel for all heating application of various industries. LPG has a better Calorific value in comparison to LDO, HSD, FO, LSHS, C9 etc conventional fuels. TURNKEY INSTALLATIONS COVERS:
• Design, Drawing for the entire LPG yard as per statutory Requirement & OISD norms.
• Fabrication of Pressure Vessel as per ASME & CCE fabrication Codes .
• Supply of complete Tanks, Pumps, compressor, Vaporizers with apalities invitable for individual costomers / client requirement.
• Erection of complete system with Inter-connection Piping, Earthing of complete system, Dedicated Control Panel for the LPG Yard.
• Rule 33 Certification by competent person certified by Indian Explosives. • Commission of the entire system with unloading of the product from Road Tanker. . Licencing From CCOE Nagpur.

Laboratory Burners  Infra Red Burners  Mono block burners  High Pressure Regulator  Industrial Burners

Saraswat Group LPG Industrial / commercial Gas Detction System

L.P Gas Monitor

Our Gas Leak Detection System has been designed with an advanced electronic technology which is user friendly for a fail safe operation at low cost. The system comprises of sensors with high sensitivity , linear performance characteristics housed in flame proof modules placed at strategic locations and connected to a centralized processing unit. The layout of the sensing modules is mapped on to the centralized processing unit for easy and fast indication of the location of the leak.An audio and visual alarm is provided to alert in case of gas leak. The flame proof junction box is approved by CMRI, CCOE and BIS Certified. These Flame Proof Sensing Modules can be fitted in bulk storage areas like LPG Bullet Yards, Gas Banks with Multi Cylinders in Manifold and Operation/Utility areas inside Factories/Plants, Cooking areas in Food Courts/Canteens/Kitchens. Central Processing cum Display unit consists of a signal processing circuitry where a milli volt signal is amplified to activate an audio warning like a Siren / Hooter, with a simultaneous visual activation of a LED in a pre-mapped diagram of the area covered, for easy identification. We can install Gas shut off device with Controller to automatically cut off Gas Supply in the event of gas leak activation recommended for Utility Areas.
